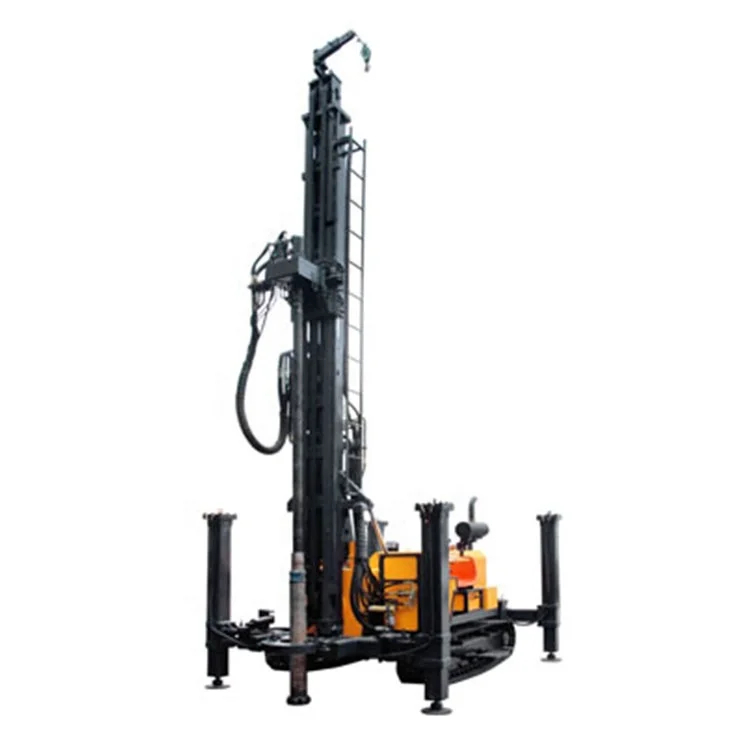

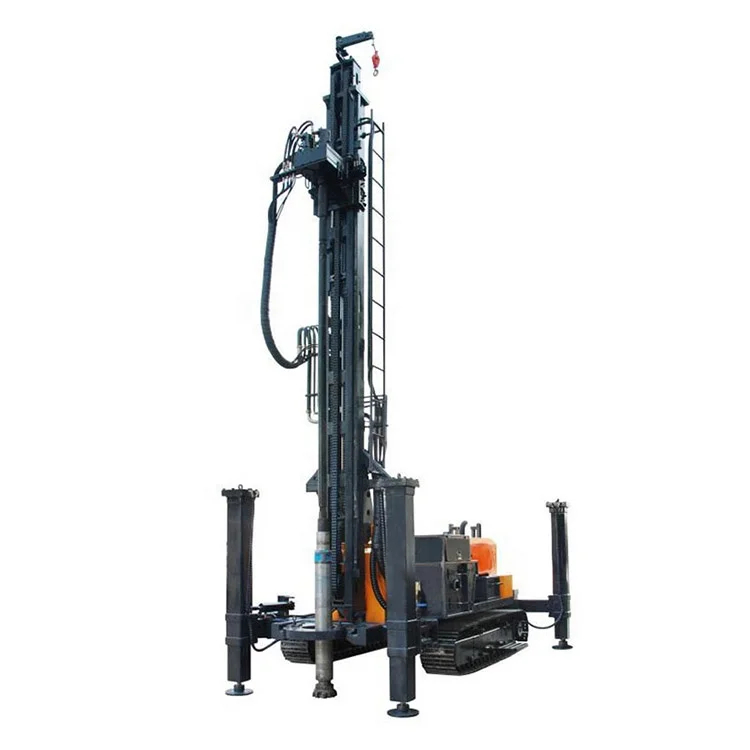

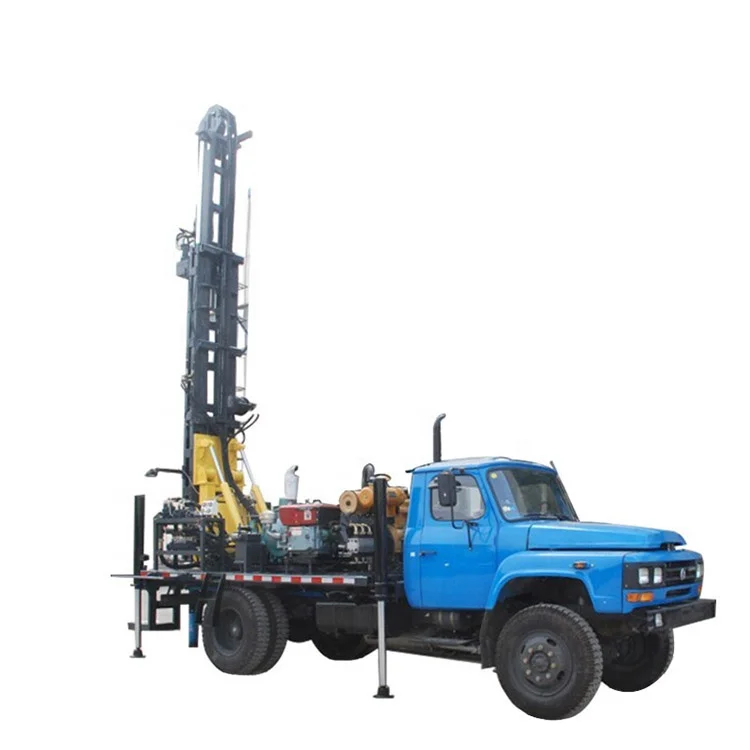

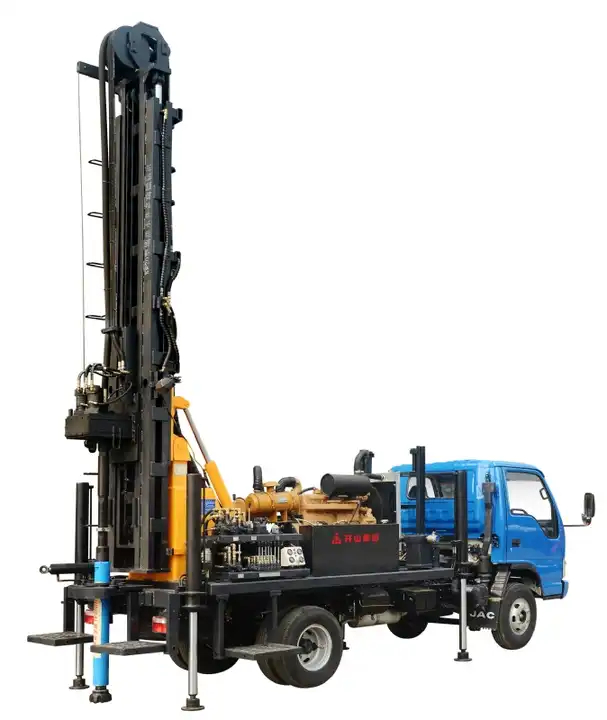

200 Meters Truck Mounted Water Well Drilling Rig Drilling Rig for Water Well DTH Drilling Machine
KW Series multi-function type geothermal well drilling machine is a lightweight, high efficiency, multifunctional drilling rig. KW drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.
| Model No | KW200 water borehole drilling rig |
| Drilling Hole Diameter | 110-250mm |
| Drilling Depth | 200m |
| Working pressure | 10.5-24.6bar |
| Air consumption | 16-30m³/min |
| Propeller Shaft Stress | 0-2.5T |
| Lifting power | 5T |
| Pulling Force of Landing Leg Cylinder | 32T(4 legs) |
| Stroke of Landing Leg Oil Cylinder | 0.4m |
| Sliding Plate Stroke | 2380mm |
| Slow Lifting Speed | 8m/min |
| Slow Pushing Speed | 0-15m/min |
| Fast Lifting Speed | 26m/min |
| Fast Pushing Speed | 51m/min |
| Rotation torque | 4200N.m |
| Rotation Speed | 33-67r/min |
| Lifting Power of Hoist | 1T |
| Diesel Engine model | YC4D80 |
| Engine Power | 58kw |
| Travelling speed | 0-2.5 km/h |
| Climb capacity | 20° |
| Weight | 4500kg |
| Dimension | 2700*1550*2350mm |
