Gold Mining Exploration Diamond Wireline Coring Geotechnical Investigation Drill Rig

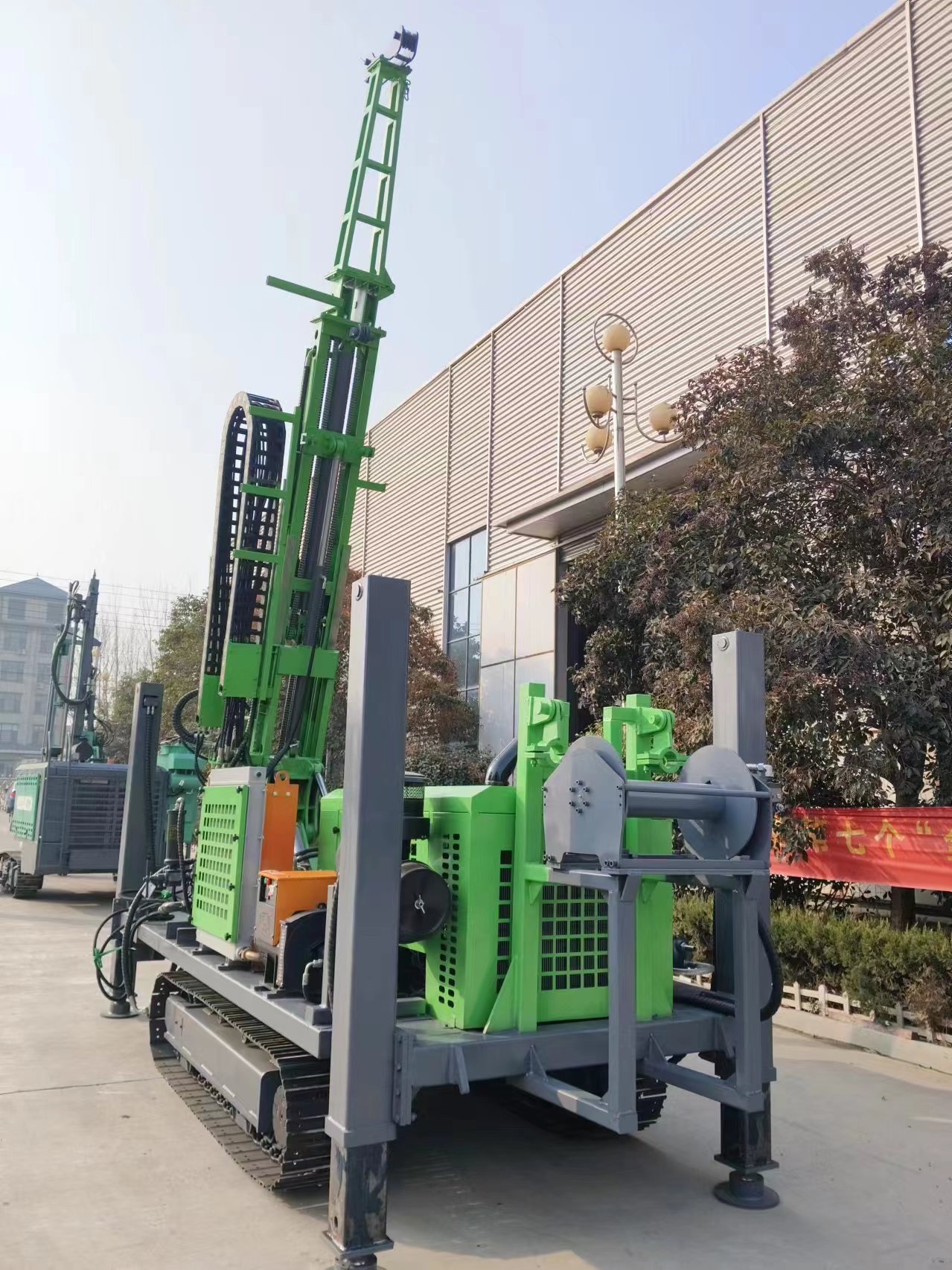

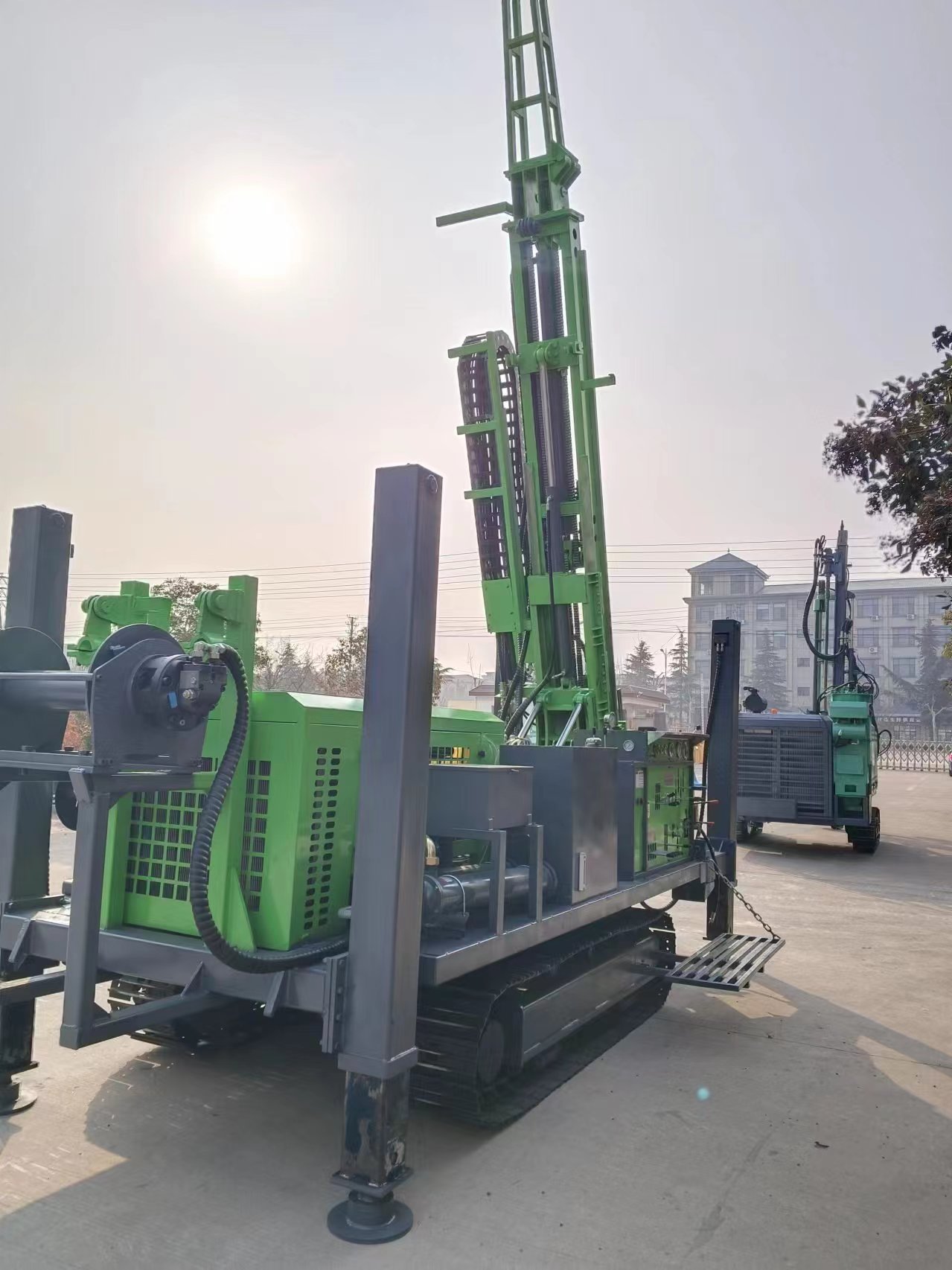

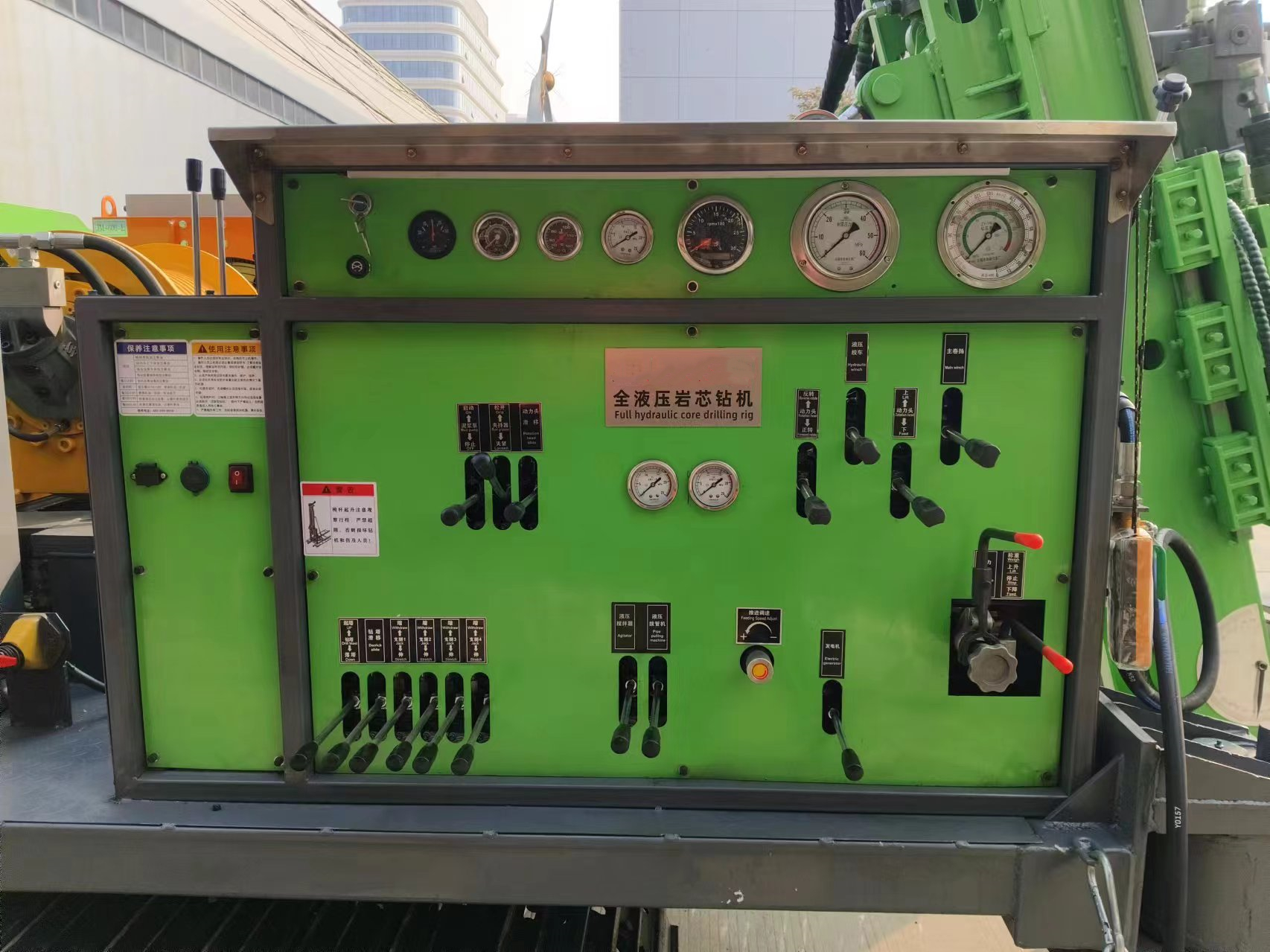

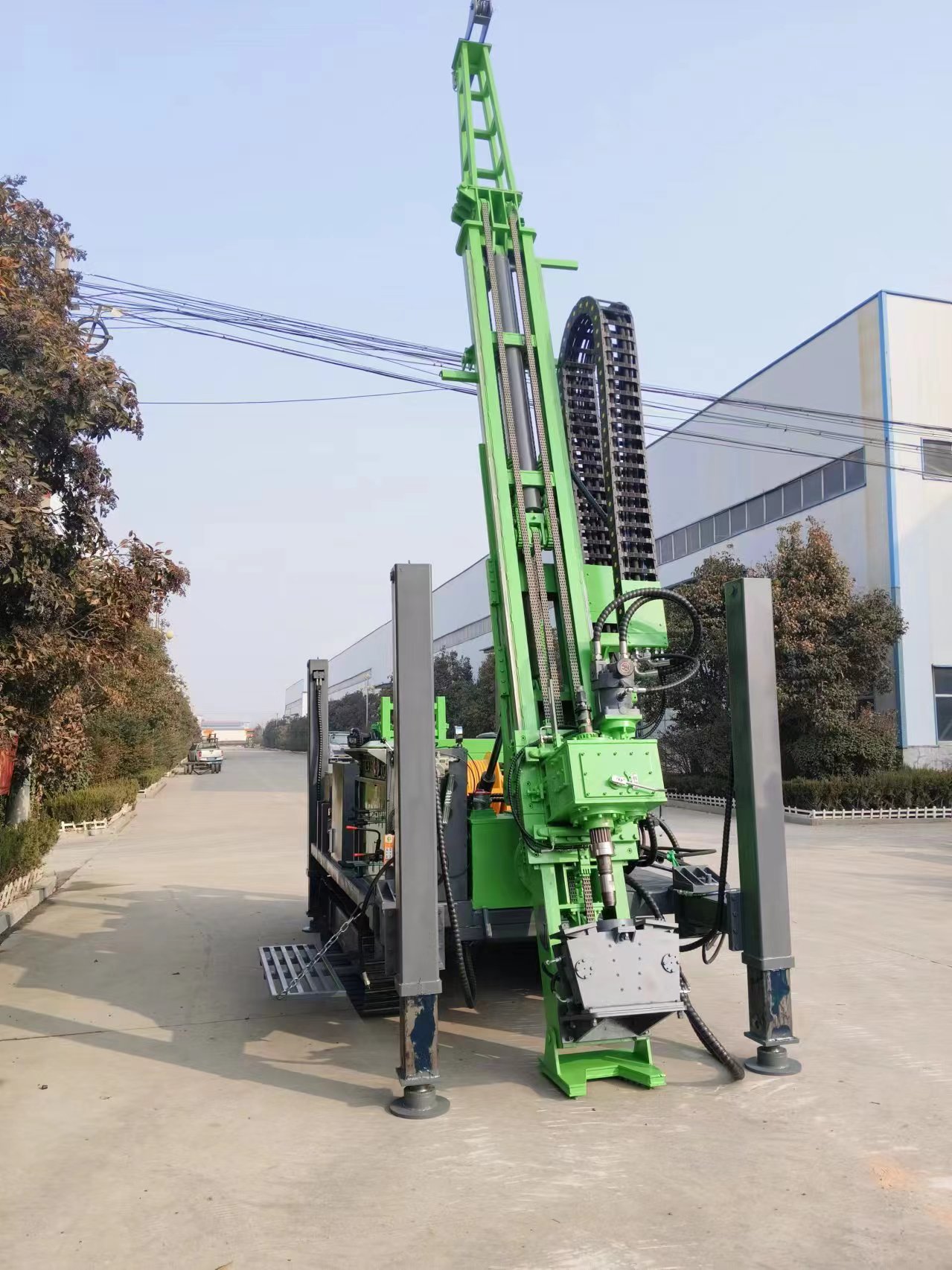

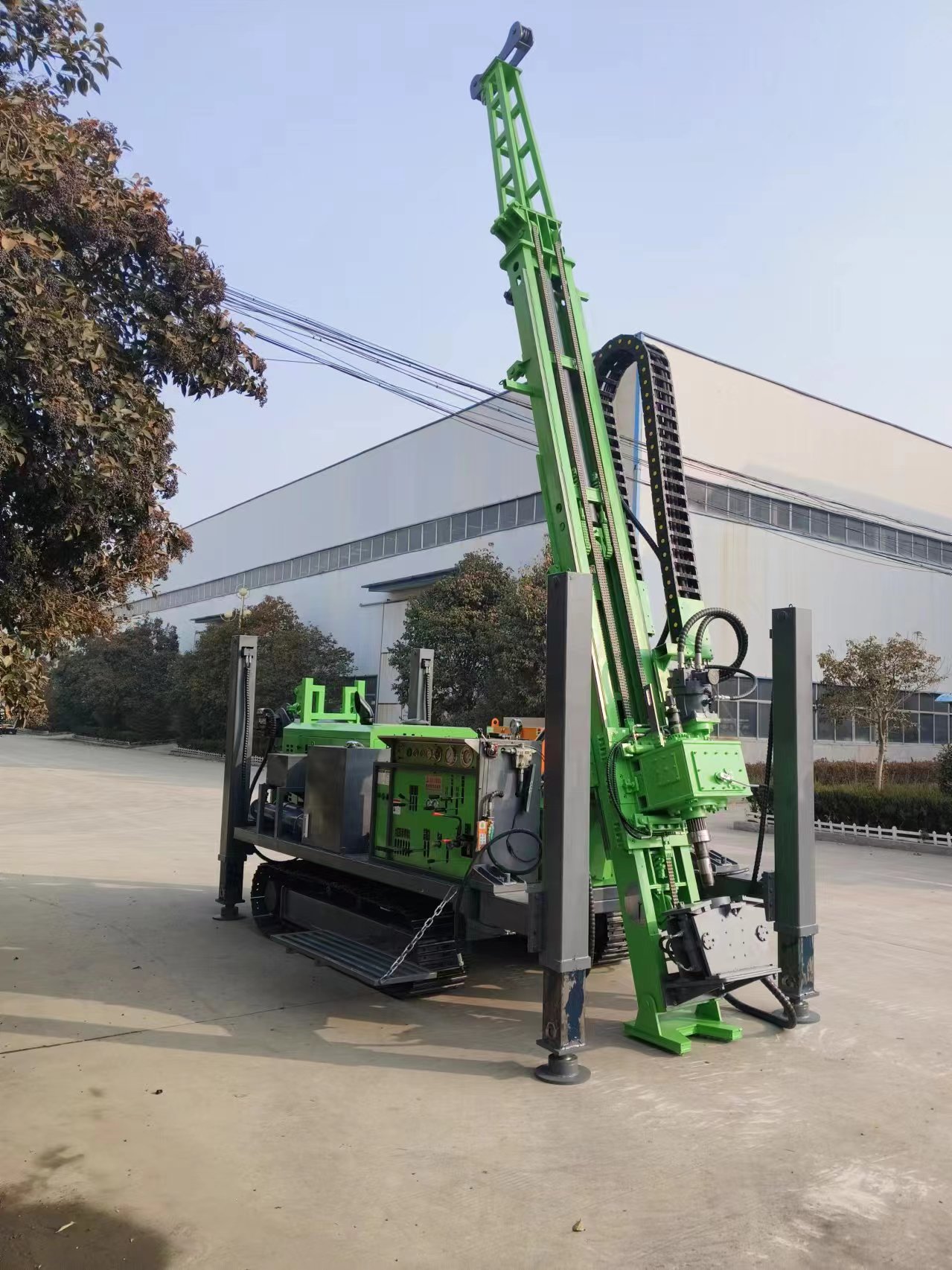

Fully hydraulic rope core drilling rigs, divided into 300, 400, 500, 600, 800, 1000, 1200, 1600 and 2000 meters with complete models and high efficiency, adopt the latest technology, and can be customized according to customer needs to adapt to various working environments. The hydraulic fixture system makes it easy to complete the drilling task with a drilling angle of 45°-90°. The machine comes with a mud dyeing pump to make the work easier and save user costs; the drilling rig is equipped with a high-performance hydraulic oil pump to make the machine neat, more flexible and more stable; the overall steel structure is thickened with steel plates to increase the stability of the machine and make it more durable. The operating system is easy to learn and easy to operate.
| Model | DC300 | DC400 | DC500 | DC600 |
| The weight(T) | 6.5 | 6.8 | 7 | 7.5 |
| The hole diameter(mm) | 60-110 | 60-110 | 60-110 | 60-110 |
| Drilling depth（m） | 300 | 400 | 500 | 600 |
| Drilling angle（°） | 45°-90° | 45°-90° | 45°-90° | 45°-90° |
| Engine power（kw） | 75 | 85 | 96 | 118 |
| Mud pump model | BW90-3 | BW90-3 | BW90-3 | BW90-3 |
| Gradeability（°） | 30 | 30 | 30 | 30 |
| Walking speed（kw） | 2.5 | 2.5 | 2.5 | 2.5 |
| Drill pipe length(m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Lifting force(T) | 10 | 10 | 10 | 12 |
| Slewing speed（rpm） | 0-1200 | 0-1200 | 0-1200 | 0-1200 |
| Overall dimension(mm) | 4800*1700*2280 | 4800*1800*2280 | 5300*2000*2300 | 5500*2200*2300 |
