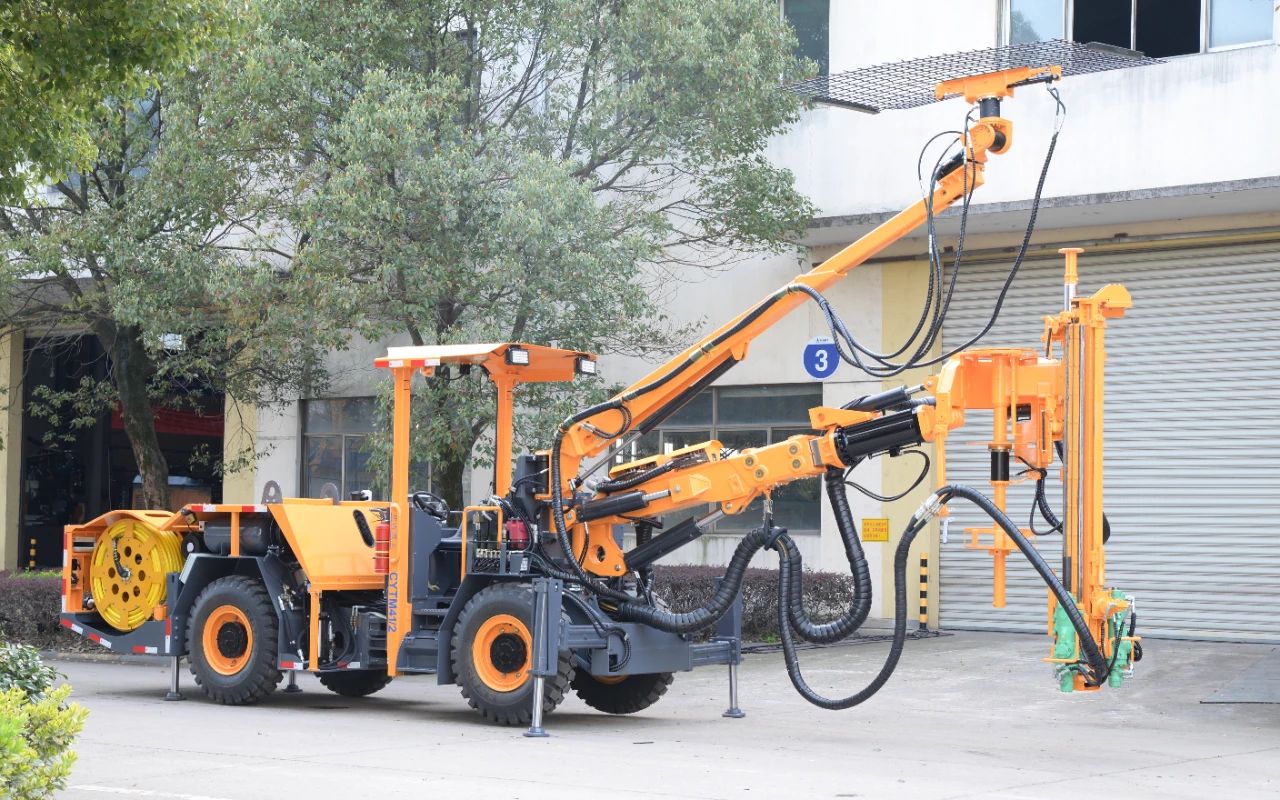

Kalshang KM311 Automatic Rock Anchor Drilling Machine Rock Hydraulic Mining Bolt Drilling Rig for Coal Mine Gold

The Kalshang brand KM311 Hydraulic rock bolting rig is specially designed for the construction of rock bolt in the pipe seam and it is capable of passing the section 2.5 meters wide and 2.2 meters high. It is suitably qualified for anchoring operations in tunnels whose section extends to a width of over 2.5 meters and a height of over 3 meters.

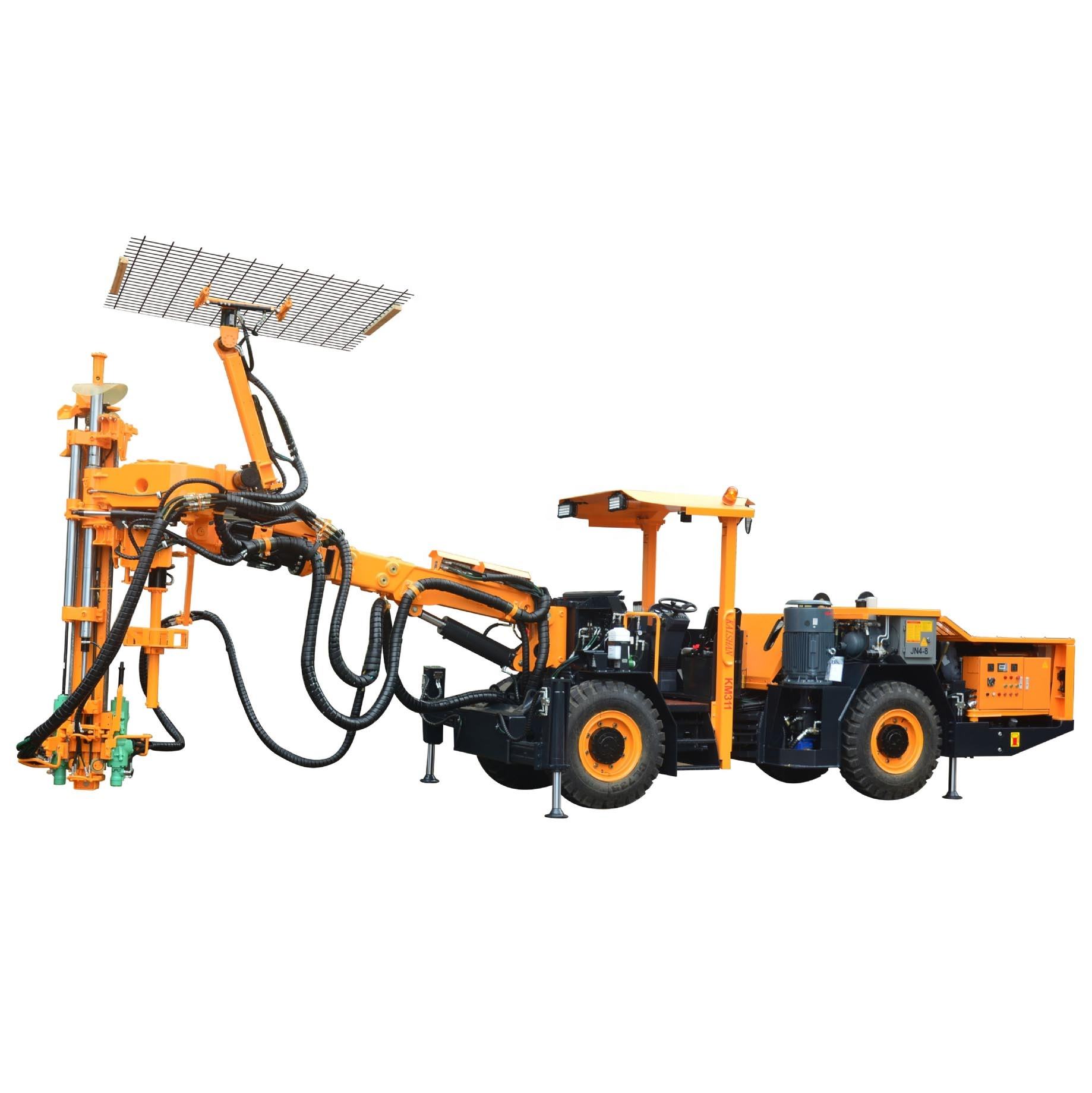

Complete functions. The beam have two working stations and it is equipped with a magazine having a storage capacity of 10 rock bolt rods,along with optional protective netting module; it is capable of performing the following tasks: drilling, netting and installation of rock bolting rod;
High safety. Operators are protected by the ceiling, far away from the danger area;
High efficiency. The stepped piston is used for the high-frequency rock drill and this can improve the transmission efficiency of impact wave and improve drilling speed and reduce the consumption of drilling tools and make it in good condition;
The drill rig provides a good view for the operator; the articulated chassis of four-wheel drive ensures the flexible, quick and safe driving in the narrow tunnel;
Considerable space and automatic functions enable the driver to concentrate on drilling in a safe, fast and accurate manner; all the relevant parts are kept in good protection, thus making maintenance easy.

Specifications:

Dimensions and weight		Drilling system
Length	10700mm		Drilling	Bolt rod install
Width	1750mm	Model	1×HC25/R32	1×HC25/R32
Height	2000/3000mm	Impact power	8kW	8kW
Weight	12000kg	Impact flow	65L/min	65L/min
Travel speed	10km/h	Impact pressure	150bar	150bar
Climbing capacity	25%(14°)	Max rotary pressure	175bar	－－－－
Safety protection		Impact frequency	55－65Hz	55－65Hz
Noise level	＜100dB(A)	Torque	325Nm	－－－－
Lifting safety roof	Meet the requirements of FOPS and ROPS	Hole diameter	32－51mm
Air & water system		Feed extension	480㎜
Air Equipment	1×JN5	Beam rotation	360°
Capacity	0.5m3/min	Height of tunnel	Length of bolt rod+1500mm
Pressure	5－8bar	Model of drill arm	K26F
Device of shank lubrication	Electronic pulse lubrication pump	Form	Self-leveling
Air consumption of lubrication	0.3m3/min	Extension of drill arm	1200mm
Oil consumption of lubrication	180-250g/h	Electric hydraulic power unit
Water pump	1×CR3	Motor	37KW
Power	1.5kW	Impact/feed/drill arm	Axial vanable displacement piston pump
Capacity of water pump	3m3/h	Rotation	Gear pump
Chassis		Filter fineness	10μ
Diesel engine	60kW 2200rpm	Hydraulic oil tank	240L
	QSB3.9	Hydraulic cooler	Water cooler
Exhaust purification	Exhaust catalyst	Working voltage	380V
Drive system	Four wheel drive system with wet axle (closed travelling system)	Frequency	50Hz
Travel braking	Wet brake	Starting method	Star-triangle
Parking braking	Wet multidisc brake	Cable reel	1×K440
Fuel tank	60L	Length of reel canling	100m
		Outer diameter of cable	28mm
		Specification of cable	3×25+3G6
