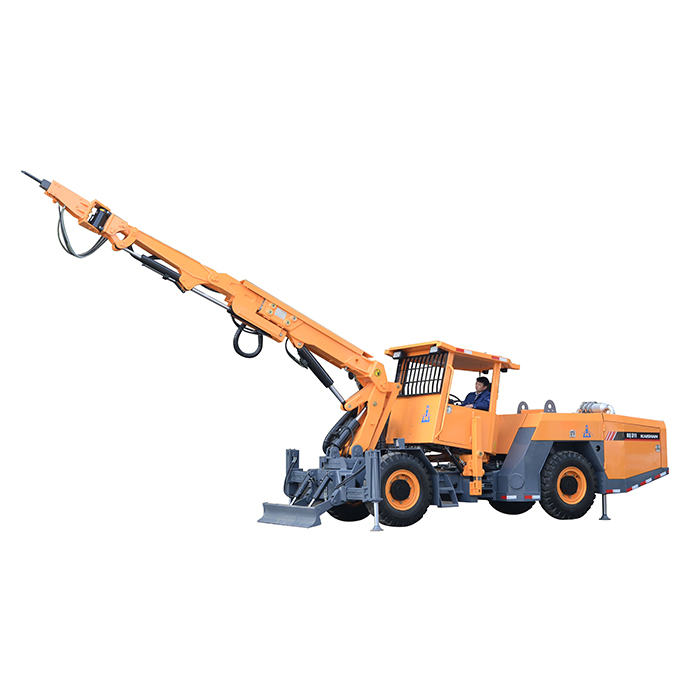

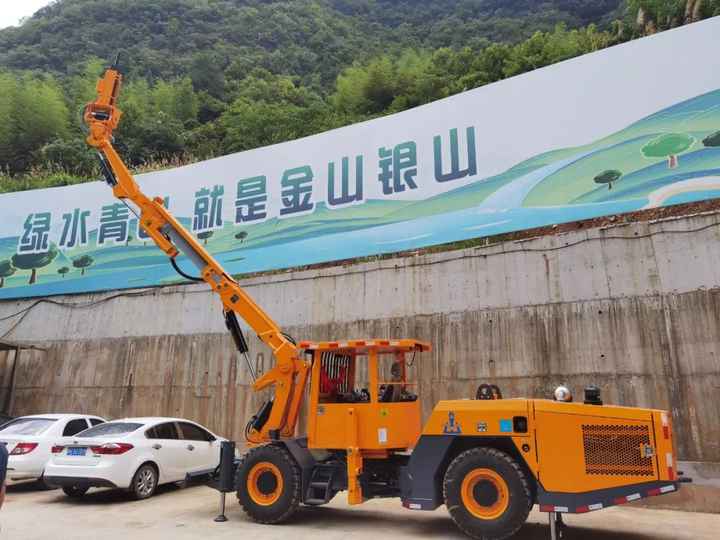

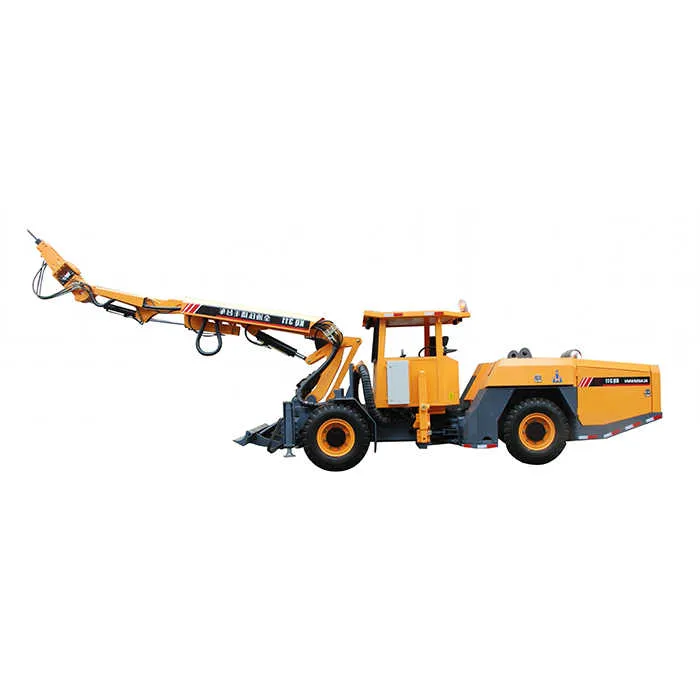

Kalshang KQ311 Underground Tunneling Scaling Drilling Rig Machine

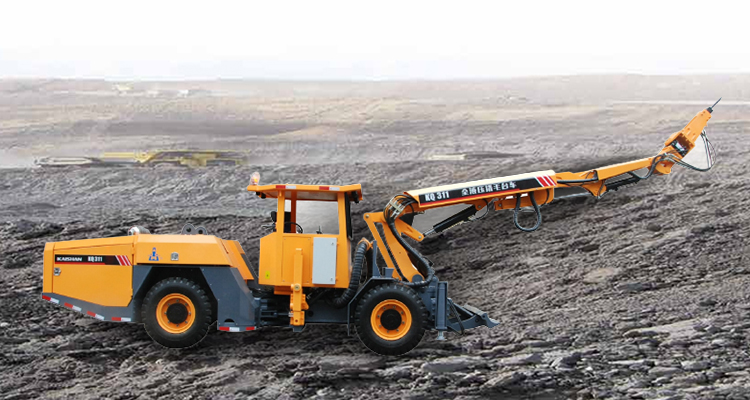

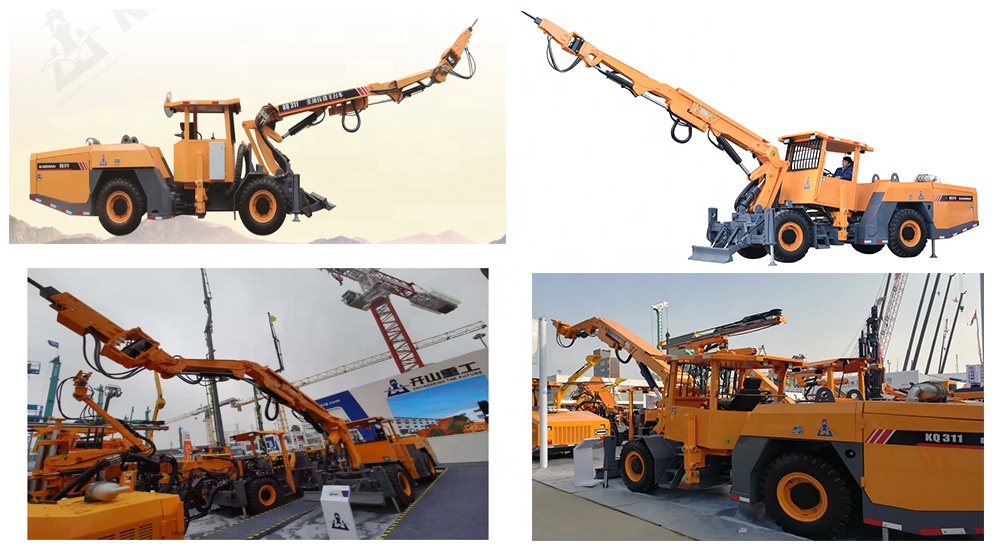

KQ311 full-hydraulic hair-prizing drilling rig is powered by Guosan diesel engine, which is mainly suitable for hair-prizing operation in metal mines and various underground tunnels. The working arm of the rig is foldable and equipped with a hydraulic hammer driven by a rotary oil cylinder and a mechanical translation mechanism, which can operate the working face, roof, side wall and floor in all directions. At the same time, the hydraulic system of the rig adopts proportional pilot control, so it has the characteristics of flexible operation and smooth movement. Compact structure, good mobility, small turning radius and strong climbing ability, which can greatly improve the efficiency and safety of crowning operation.

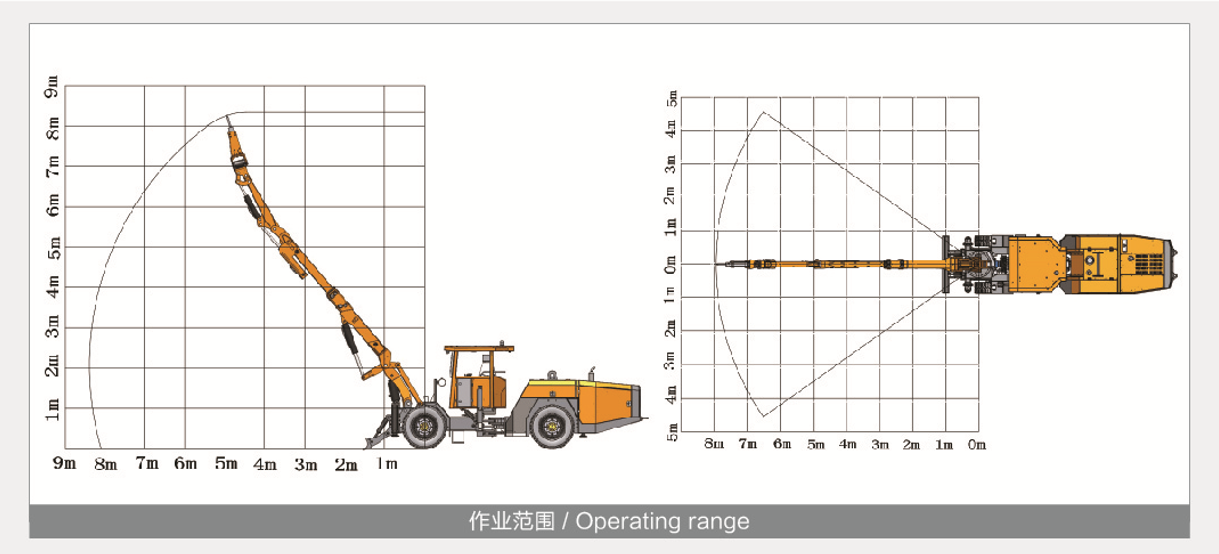

Product Specifications

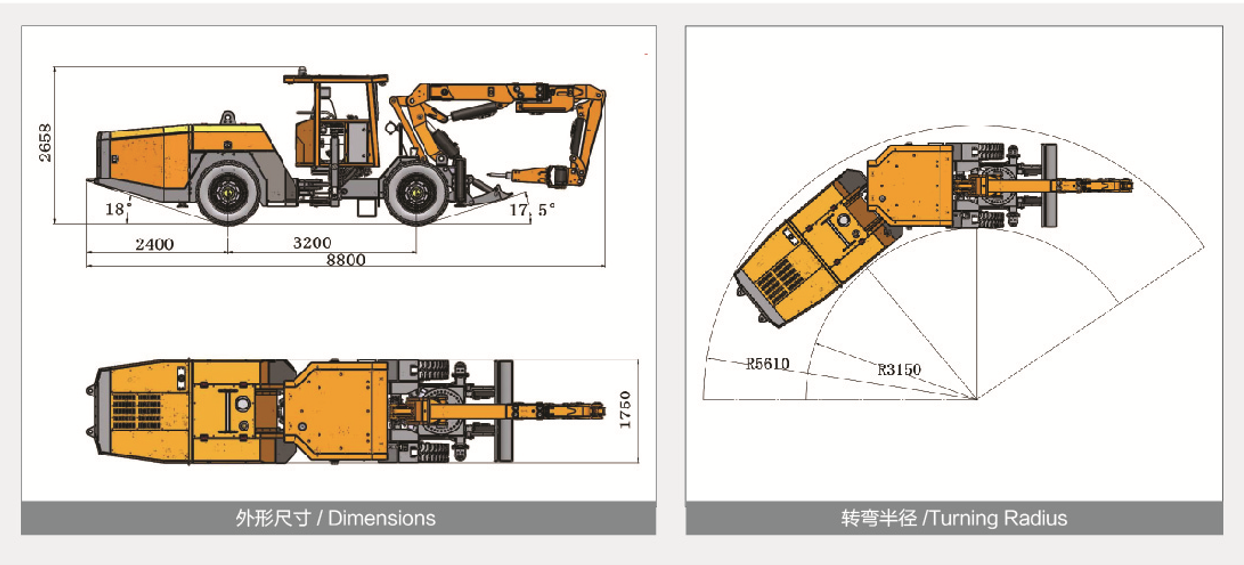

| Dimensions | Length 8800 mm | Hydraulic hammer | Soosan SB30 |
| Width 1750 mm | Impact power | 350J | |
| Height 2650 mm | Impact frequency | 9-16Hz | |
| Weight | 12000 kg | Drive flow | 25-40L/Min |
| Engine | Cummins QSB3.9-C80-31 | Working pressure | 90-125Bar |
| power/speed | 60kw/2200rpm | Angle of swing arm | ±30° |
| Exhaust purification | Exhaust catalyst | Pitch angle of translational arm | 45° |
| Drive system | Four-wheel drive system with wet axle | Liftiong angle of mid-arm | 60° |
| Swing angle | ±6° | Pitch angle of front arm | 95° |
| Tires | 11.00－20 | Pitch angle of hydraulic hammer | 120° |
| Steering mechanism | ±40° | Angle of swing cylinder | ±90° |
| Turning radius（inner/outer） | 3510/5610mm | Drill arm expansion and contraction | 1200mm |
| Travelling braking | Wet brake | Maximum working height | 8300mm |
| tramming speed | 10km/h | Maximum working width | 8800mm |
| Maximum climbing capacity | 25％（14°） | Backward angle of cab | 15° |
| wheelbase | 3200mm | Power of water pump | 0.5kw |
| Wheel tread | 1400mm | Flow of water pump | 2L/Min |
| Ground clearance | 300mm | Cab lift | 400mm |
