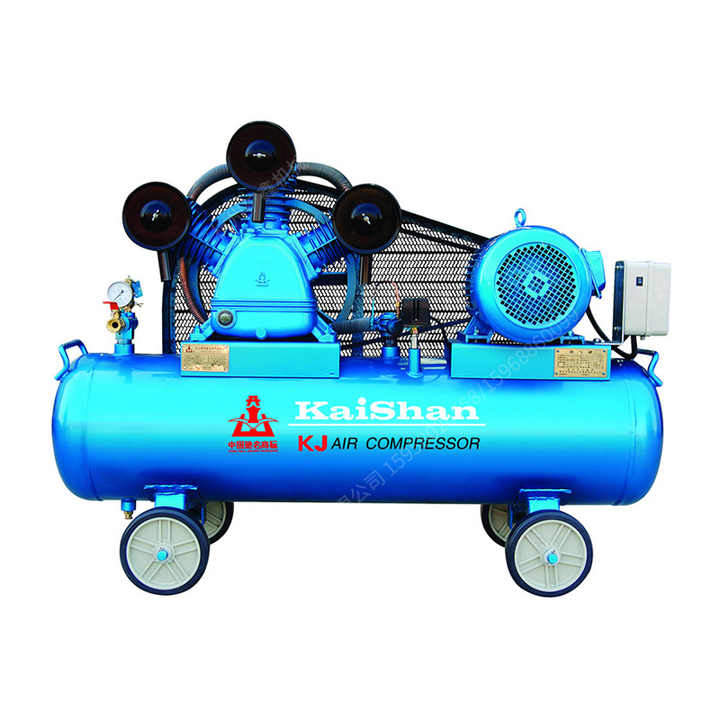

KJ Series Portable 30 cfm 12.5 bar 1.25Mpa KJH100 Piston Air Equipment for Sand Blasting
Product Application
Brief introduction of our products
This series air Equipments are widely used in pneumatic clamping, pneumatic tools, tire inflation, blowing craft, painting, sand blasting, compressed air jet components and other places need.

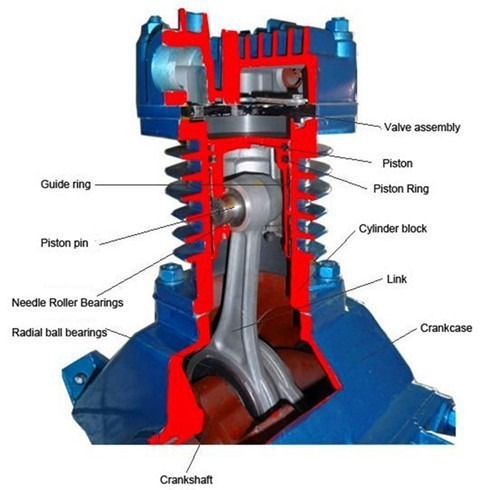

Air Equipment piston within the cylinder for reciprocating motion of the piston moves to the right and left cavity of the piston in the cylinder pressure is below atmospheric pressure, the suction valve open, outside air inhaled in cylinder, this process is called the compression process. When the output air pressure is higher than the pipe in cylinder pressure, exhaust valve opens. Compressed air to the pipeline, this process is known as the exhaust process. The reciprocating movement of the piston is driven by motor slider-crank mechanism. The rotation of the crank movement into sliding – the reciprocating movement of the piston.
Main Features
1.KS series can 8 hours continuous working.
2.Using annular valve group design, valve plate material is Sweden stainless steel valve plates, group valve spring material is imported from Japan set of dedicated valve spring steel wire, and no bending movement during the valve plate operation, especially good for the air valve performance and life index.
3.Piston ring use Japan’s riken ring, durable, not leak oil.
4.Crankshaft by high frequency quenching, especially wear-resisting.
5.About moving parts by precision balance, movement smoothly, especially low noise.

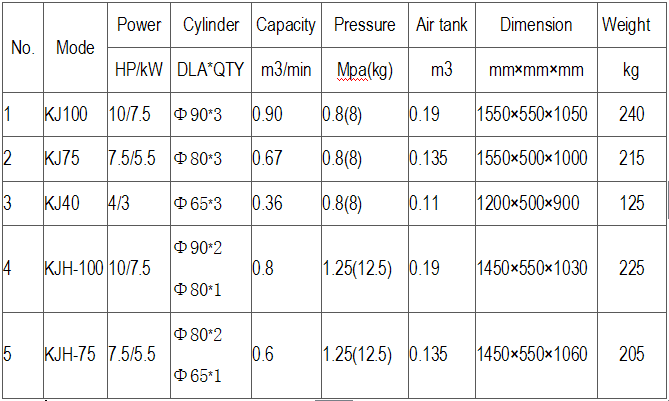

KJ models and parameters:
