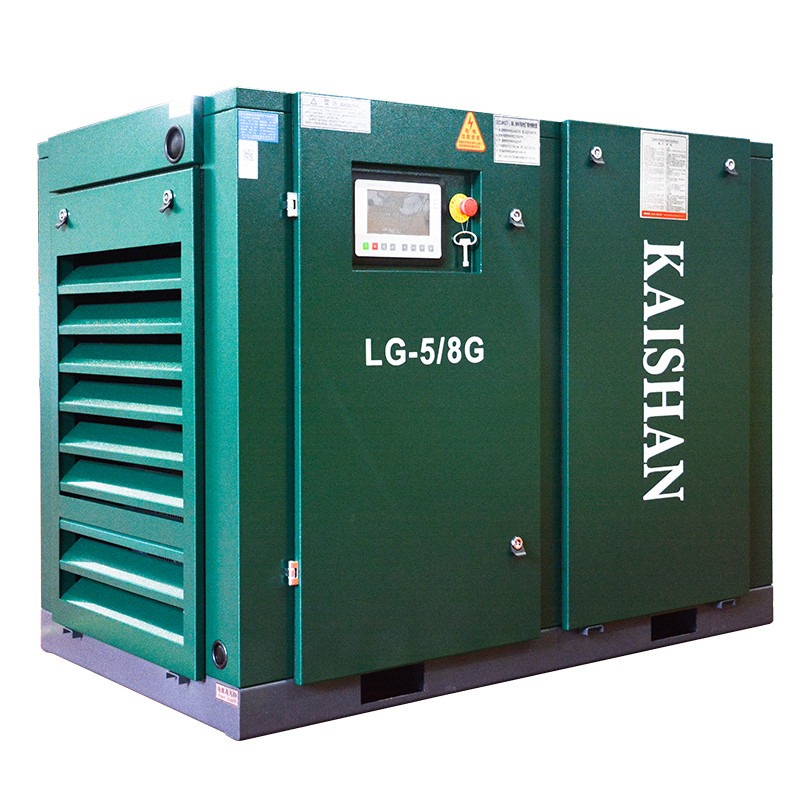

Kalshang Equipment’s LG Series oil flooded screw Equipments represent a giant leap in design and performance, with every single component designed for reliability and ease of maintenance. The LG series oil-lubricated air Equipments come with highly efficient airends equipped with our in-house eta-v profile rotors. Kalshang Equipment’s each screw Equipment is designed and manufactured in compliance with applicable international standards (CE, ASME, UL, and others). The Kalshang LG series oil flooded screw Equipment are available in three variants to suit your needs. These air Equipments are equipped with our in-house eta-V profile rotors, making them energy-efficient. The Kalshang LG series screw air Equipments offer the best-in-class warranty program and operating cost.
The 7.5-75KW LG series finds application in auto garages, textiles, electronics, engineering, and packaging. The 90-160kW and 200-400kW range is suitable for automotive, cement, paper and pulp, steel, etc.
| Model | Pressure
(Mpa) |
Capacity
(m3/min) |
Motor power
(KW) |
Outlet | Weight(KG) | Dimension(MM) | VSD Weight
(kg) |
VSD Dimension(MM) |
| LG7.5-8GA | 0.8 | 1.2 | 7.5 | G1 | 260 | 820×700×1010 | 280 | 980×700×1010 |
| LG7.5-10GA | 1 | 1 | ||||||
| LG7.5-13GA | 1.3 | 0.8 | ||||||
| LG11-8GA | 0.8 | 1.7 | 11 | G1 | 450 | 1060×800×1230 | 500 | 1100×800×1300 |
| LG11-10GA | 1 | 1.5 | ||||||
| LG11-13GA | 1.3 | 1.2 | ||||||
| LG15-8GA | 0.8 | 2.3 | 15 | G1 | 500 | 1060×800×1230 | 550 | 1100×800×1300 |
| LG15-10A | 1 | 2.1 | ||||||
| LG15-13GA | 1.3 | 1.6 | ||||||
| LG18-8GA | 0.8 | 3.37 | 18.5 | G1 | 510 | 1370×900×1110 | 550 | 1370×900×1110 |
| LG18-10GA | 1 | 2.53 | 1370×900×1190 | |||||
| LG22-8GA | 0.8 | 4.2 | 22 | G1 | 540 | 1370×900×1110 | 600 | 1370×900×1110 |
| LG22-10GA | 1 | 3.3 | 1370×900×1190 | |||||
| LG22-13GA | 1.3 | 2.42 | ||||||
| LG30-8GA | 0.8 | 5.8 | 30 | G11/2 | 650 | 1600×960×1220 | 730 | 1870×960×1220 |
| LG30-10GA | 1 | 4.5 | ||||||
| LG30-13GA | 1.3 | 3.55 | ||||||
| LG37-8GA | 0.8 | 7.0 | 37 | G11/2 | 700 | 1600×960×1220 | 780 | 1870×960×1220 |
| LG37-10GA | 1 | 5.4 | ||||||
| LG37-13GA | 1.3 | 3.7 | ||||||
| LG45-8GA | 0.8 | 8.7 | 45 | G11/2 | 880 | 1630×960×1220 | 1000 | 1960×960×1220 |
| LG45-10GA | 1 | 6.6 | ||||||
| LG45-13GA | 1.3 | 5.3 | ||||||
| LG55-8GA | 0.8 | 10.5 | 55 | G11/2 | 1090 | 1850×1200×1500 | 1450 | 2010×1200×1500 |
| LG55-10GA | 1 | 8.4 | ||||||
| LG55-13GA | 1.3 | 6.5 | ||||||
| LG75-8GA | 0.8 | 14.2 | 75 | G2 | 1550 | 2160×1220×1580 | 1780 | 2310×1220×1580 |
| LG75-10GA | 1 | 11.6 | ||||||
| LG75-13GA | 1.3 | 9.5 | ||||||
| LG90-8GA | 0.8 | 17.2 | 90 | G2 | 2000 | 2160×1320×1580 | 2150 | 2290×1320×1580 |
| LG90-10GA | 1 | 14.2 | ||||||
| LG90-13GA | 1.3 | 11.6 | ||||||
| LG110-8GA | 0.8 | 20.8 | 110 | DN65 | 2700 | 2440×1400×1710 | 2850 | 2710×1400×1710 |
| LG110-10GA | 1 | 16.9 | ||||||
| LG110-13GA | 1.3 | 13.9 | ||||||
| LG132-8GA | 0.8 | 24.3 | 132 | DN65 | 2800 | 2440×1400×1710 | 2950 | 2710×1400×1710 |
| LG132-10GA | 1 | 20.9 | ||||||
| LG132-13GA | 1.3 | 16.5 | ||||||
| LG160-8GA | 0.8 | 30 | 160 | DN65 | 3600 | 2860×1510×1810 | 3050 | 3360×1510×1810 |
| LG160-10GA | 1 | 23.8 | ||||||
| LG160-13GA | 1.3 | 20.5 | ||||||
| LG185-8GA | 0.8 | 33.5 | 185 | DN80 | 4500 | 3400×2100×2100 | 4600 | 3410×2000×2000 |
| LG185-13GA | 1.3 | 23.6 | DN65 | 3700 | 2860×1510×1810 | |||
| LG200-8GA | 0.8 | 36.8 | 200 | DN80 | 4500 | 3400×2100×2100 | 4700 | 3410×2000×2000 |
| LG200-10GA | 1 | 32.9 | DN80 | 4500 | 3400×2100×2100 | |||
| LG200-13GA | 1.3 | 29.2 | ||||||
| LG220-8GA | 0.8 | 42.5 | 220 | DN100 | 5850 | 3700×2200×2200 | 6000 | 4000×2200×2160 |
| LG220-10GA | 1 | 36.5 | ||||||
| LG-35/10G | 1 | 35 | 250 | DN100 | 5950 | 3700×2200×2200 | 6200 | 4000×2200×2160 |
| LG250-8GB | 0.8 | 45.5 | ||||||
| LG250-8GA | 0.8 | 43.8 | 6000 | |||||
| LG250-10GA | 1 | 41.9 | ||||||
| LG250-13GA | 1.3 | 36.2 | ||||||
| LG280-8GA | 0.8 | 49.8 | 280 | DN125 | 7000 | 4200×2200×2210 | 7200 | 4200×2200×2210 |
| LG-50/8GB | 0.8 | 50 | 315 | DN125 | 7100 | 4200×2200×2210 | 7400 | 4200×2200×2210 |
| LG315-8GA | 0.8 | 55 | 7200 | |||||
| LG315-10GA | 1 | 49 | ||||||
| LG315-13GA | 1.3 | 44.1 | ||||||
| LG355-8GA | 0.8 | 60.6 | 355 | DN125 | 7400 | 4200×2200×2210 | 7600 | 4750×2200×2210 |
| LG355-10GA | 1 | 54.6 | ||||||
| LG355-13GA | 1.3 | 48.5 | ||||||
| LG400-8GA | 0.8 | 72.4 | 400 | DN125 | 7400 | 4260×2260×2260 | 7800 | 4750×2300×2300 |
| LG400-10GA | 1 | 60 | 400 | GN125 | 7400 | 4260×2260×2260 | 7800 | 4750×2300×2300 |
| LG400-13GA | 1.3 | 54.2 | 400 | DN125 | 7400 | 4260×2260×2260 | 7800 | 4750×2300×2300 |
For more screw Equipments options. pls click:
Trolley Mounted Screw Equipment
Truck Mounted Equipment for Water Drilling Rigs
For DTH driling rigs & DTH drill bits and hammer:
Kalshang Drilling Rigs Company
WHY KAISHAN’S LG SERIES SCREW Equipment?
Best-in-class energy efficiency
LG series has high efficient airends which are equipped with in-house developed eta-V profile rotors, with 4/5 lobe combination, because of the unique design of the rotors it runs at optimum speeds which reduces pressure losses and increases efficiencies and in turn ensure energy-efficient compressed air supply for all demanding applications
Best-in-class maintenance and operating cost
LG Series Equipments provide high-quality compressed air in the harshest environmental conditions. Incorporating the next generation technology of KAISHAN’s oil-injected screw element provides a long and trouble-free life at the lowest possible operating cost
Lowest oil carryover in the industry
Because of our unique OSBIC process (Oil Separation by Impact and Centrifugal action) in LG Series Equipment it enables efficient separation of air and oil in 3 stages, delivering consistent oil-free air with minimum pressure drop
Best-in-class warranty program
KAISHAN comes with Uptime Assurance which is all about giving customers peace of mind by offering industry’s leading warranty which warrants that it’s product and the components for its products will perform the purpose and function for which they are designed and intended for the periods of time indicated when used, serviced and maintained in accordance with KAISHAN’s instruction and specification
Outstanding reliability stemming from slow operating speeds and low operating temperatures
Our LG series Equipments are designed to perform at extreme temperatures – from cold to hot and from dry to extremely humid conditions
Operating data and safety measures
Our LG Series Equipments are designed and perfected to ensure highest level of safety for – Pressure regulating valve, High pressure, High temperature, Pressure relief valve, Phase order and single phase
Optional variable speed drives for energy efficiency
Our LG Series Equipments have precise rotor clearances for best-in-class energy efficiency resulting in low operating speeds for long life, low maintenance and low sound level. Our in-built Variable Frequency Drives (VFD) matches Equipment output with demand by varying motor speed thus the power consumption reduces in line with the reduction in demand which helps in eliminating the frequent load-unload cycle and also the wasted power from the energy bill
