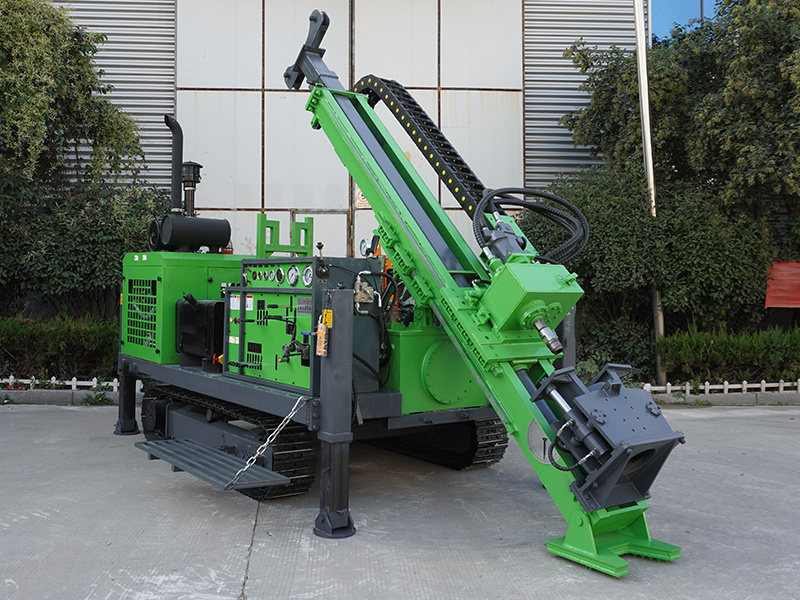

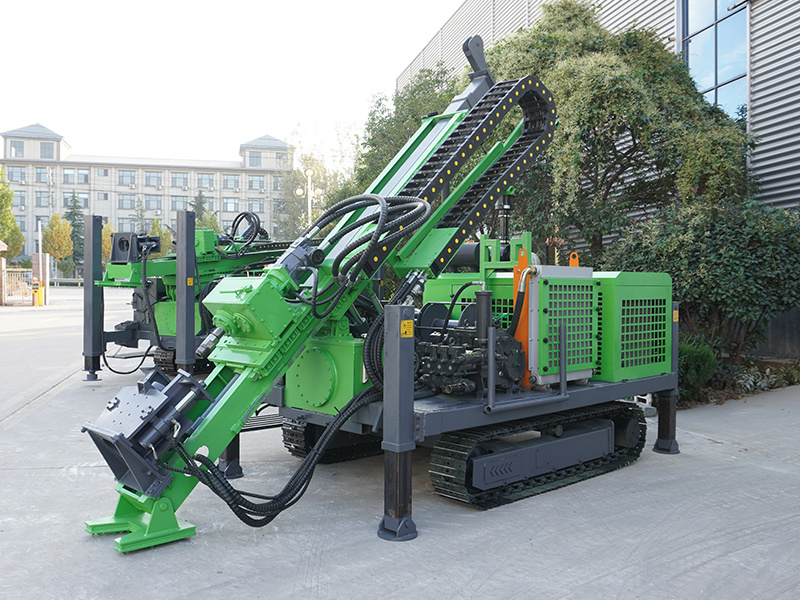

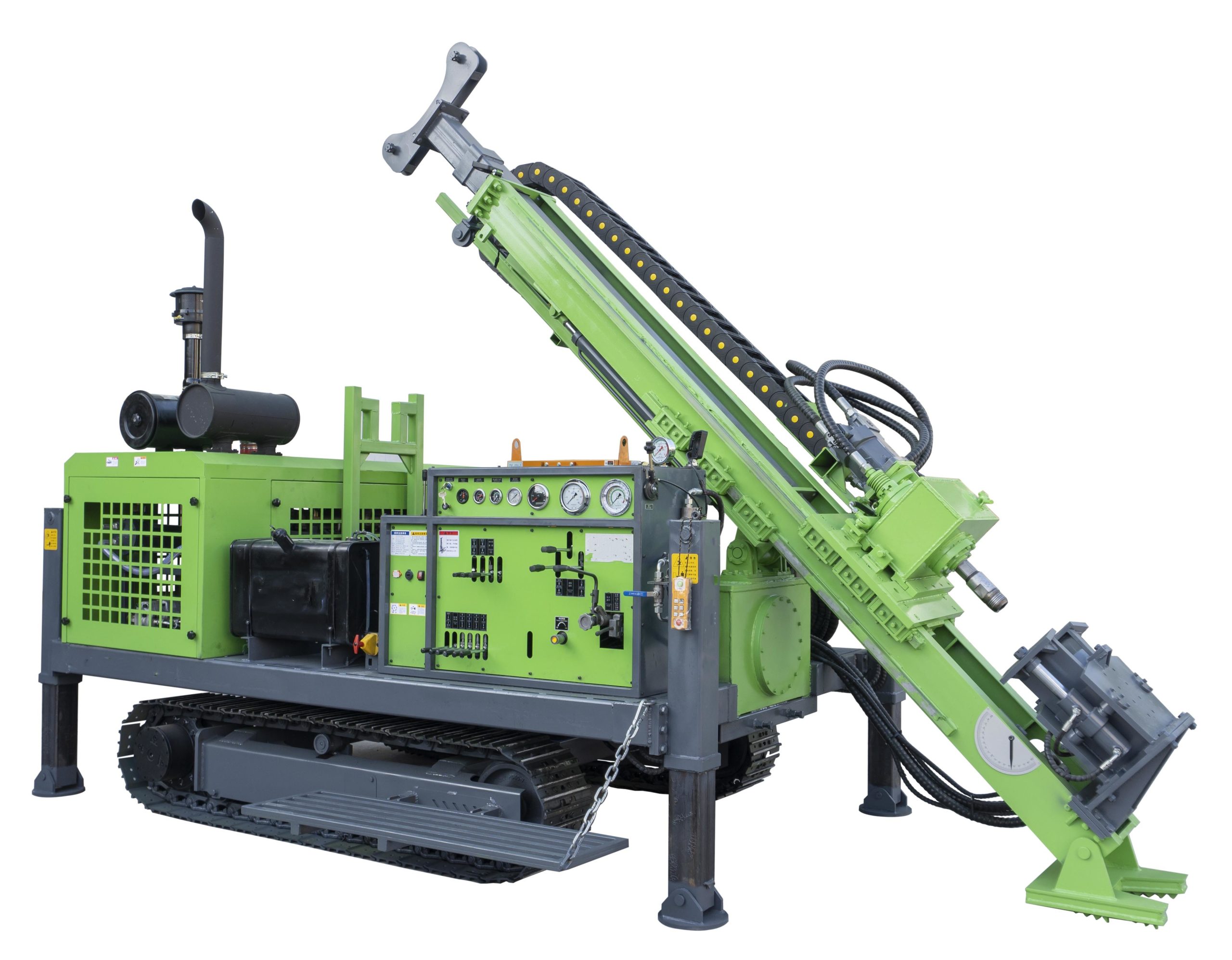

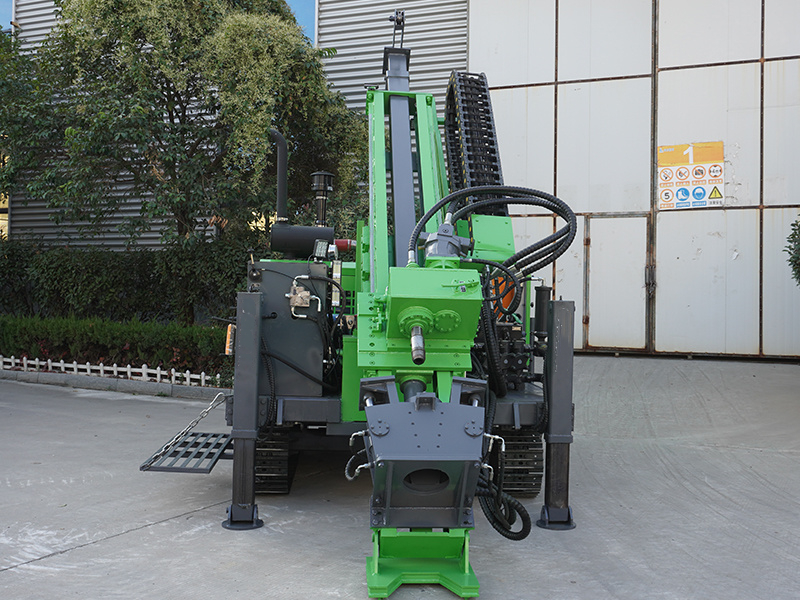

Full Hydraulic 600 -800 Meters Core Drilling Rig for Mining Soil Test
Specifications
| Model KY-600 | |
| BTW (m) | 650 |
| NTW (m) | 600 |
| HTW (m) | 300 |
| PQ (m) | \ |
| Hydraulic system | |
| Rated pressure （Mpa) | Primary pump 95ml/r.32MPa Auxiliary pump 80ml/r.25MPa |
| Cooling method | Air cooling |
| Diesel engine | |
| Model | Yuchai engine 4-cylinder 92kW |
| Rated power (Kw) | 92 |
| Rated speed (rpm) | 2200 |
| Drill head | |
| Max.torque (N.m) | 1400 |
| Max.rotation speed (rpm) | 1400 |
| Stroke (m) | 1.8 |
| Lifting force (kN) | 240 |
| Feeding force (kN) | 120 |
| Wireline winch | |
| Roller capactity(m) | 800 |
| Lifing force (kN) | 15 |
| Lifting speed (m/min) | 110 |
| Rope dia. (mm) | 6 |
| Drill mast | |
| Height(m) | 6.1 |
| Drilling angle | 45-90 |
| Slide stroke (mm) | 800 |
| Pipe clamp | |
| BQ/NQ/HQ/PQ | |
| Crawler chassis | |
| Climb angle° | 20 |
| Max walking speed (km/h) | 2 |
| Mud pump | |
| BW100 | |
| Transportation Dimension | |
| L*W*H mm | 4500*1900*2300 |
| Machine weight（t） | |
| 4.6 | |
Model KY-800
BTW (m) 1200
NTW (m) 1000
HTW (m) 800
PQ (m) 600
Hydraulic system
Rated pressure （Mpa) Primary pump 95ml/r.32MPa Auxiliary pump 80ml/r.25MPa
Cooling method Air cooling+ Water cooling
Diesel engine
Model Yuchai engine 6-cylinder 92kW
Rated power (Kw) 92
Rated speed (rpm) 2200
Drill head
Max.torque (N.m) 1800
Max.rotation speed (rpm) 1400
Stroke (m) 1.8
Lifting force (kN) 300
Feeding force (kN) 150
Wireline winch
Roller capactity(m) 1000
Lifing force (kN) 20
Lifting speed (m/min) 110
Rope dia. (mm) 6
Drill mast
Height(m) 6
Drilling angle 0-90
Slide stroke (mm) 1200
Pipe clamp
Max.through-hole dia. 146mm
Crawler chassis
Climb angle° 20
Max walking speed (km/h) 2
Mud pump
BW100
Transportation Dimension
L*W*H mm 5600*1900*2650
Machine weight（t） 7.5
Features
A. The rig is fully hydraulic driven.
B. The rig can carry out mechanical two-gear plus stepless speed regulation, and the highest torque can reach 1800N.m.
C. Axial plunger pump and inclined shaft plunger motor drive.
D. With power head lateral translation mechanism, the mast can slip as a whole by cylinder lifting and landing, and can be drilled within the range of 45-90°.
