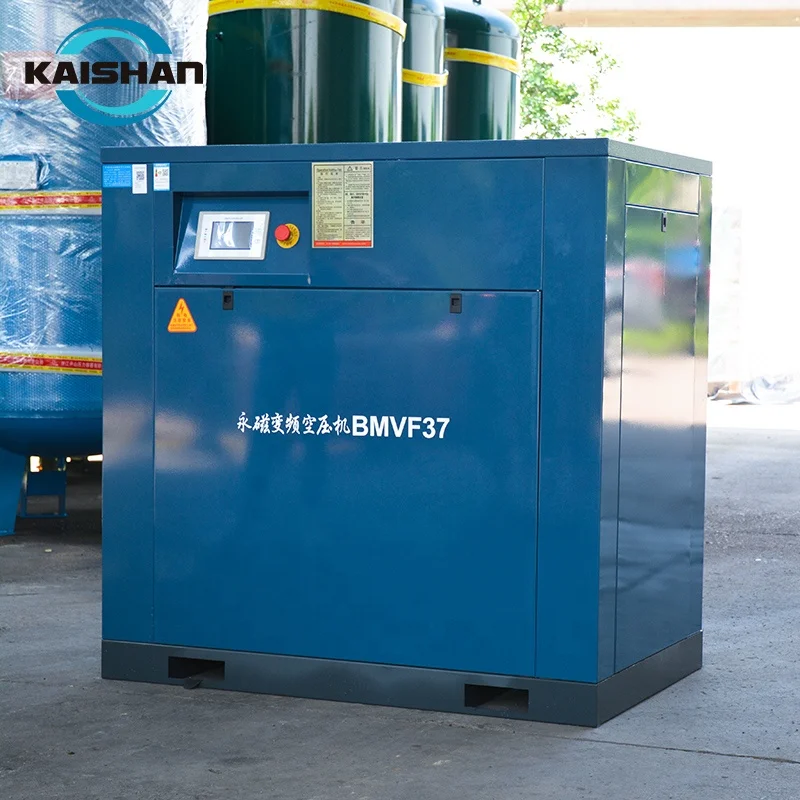

Kalshang BMVF Series Variable Frequency Screw Air Compressor VSD Screw Equipment
Kalshang BMVF Series Parameters
| Model No.: | Working power:
(Mpa) |
Air delivery:(m3/min) | Motor power:
(kw) |
Exhaust outlet: | Weight（kg） | Dimension
(L*W*H): (mm) |
| BMVF7.5 | 0.65-1.0 | 1.00-1.25 | 7.5 | G3/4 | 170 | 880*510*800 |

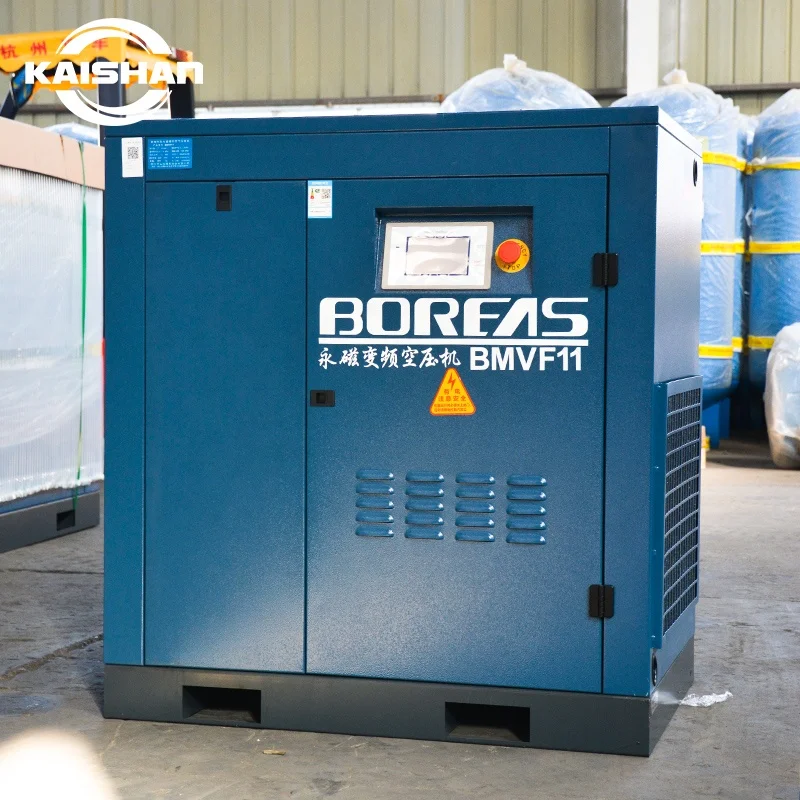

| BMVF11 | 0.65-1.0 | 1.50-1.85 | 11 | G1 | 220 | 1000*670*1090 |

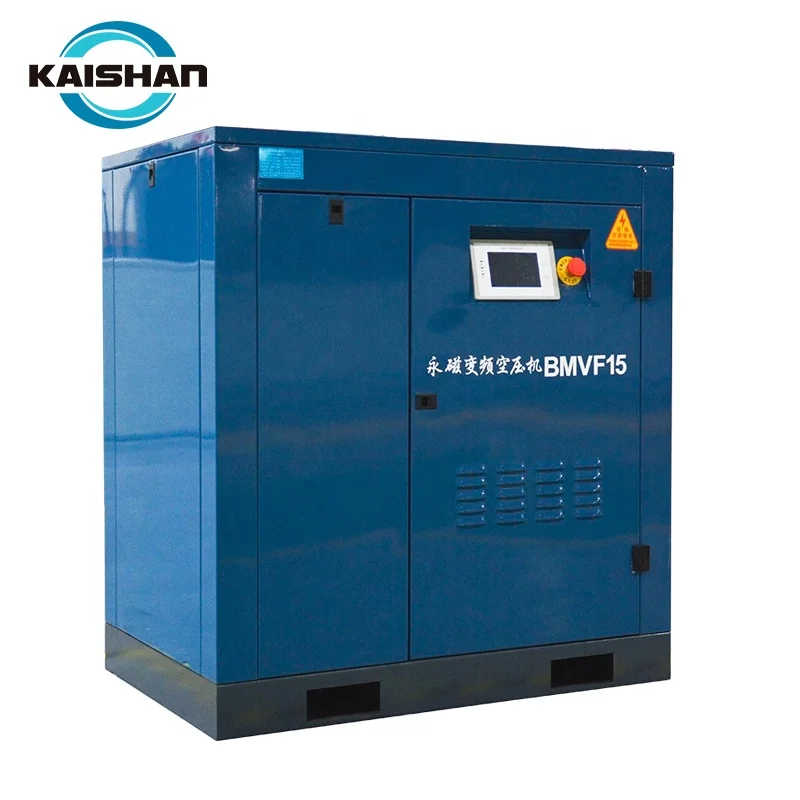

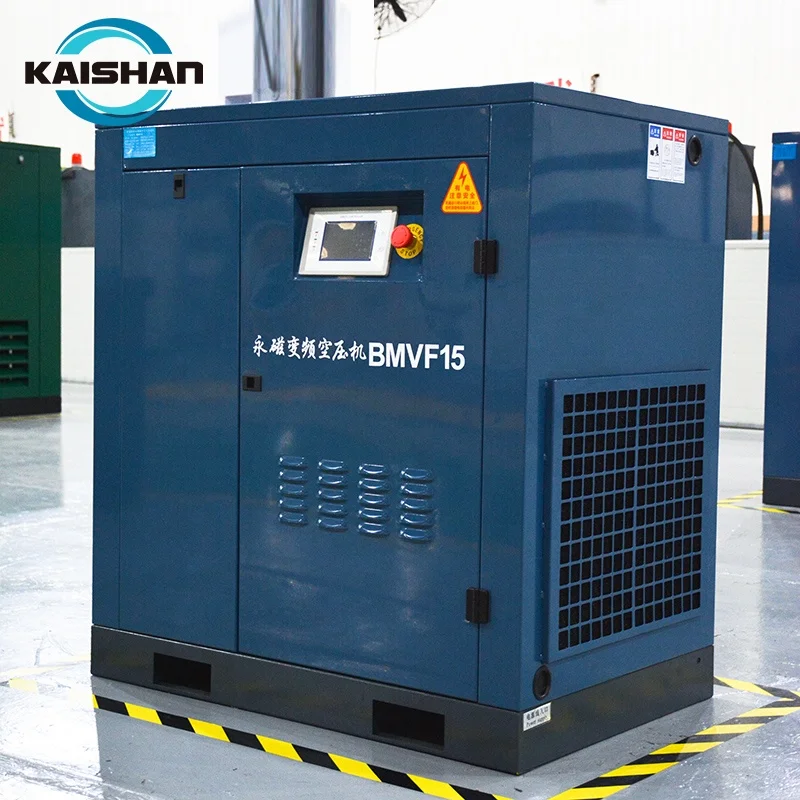

| BMVF15 | 0.65-1.0 | 2.05-2.35 | 15 | G1 | 250 | 1000*670*1090 |
| BMVF22 | 0.65-1.0 | 2.95-3.95 | 22 | G1 | 330 | 1200*800*1120 |

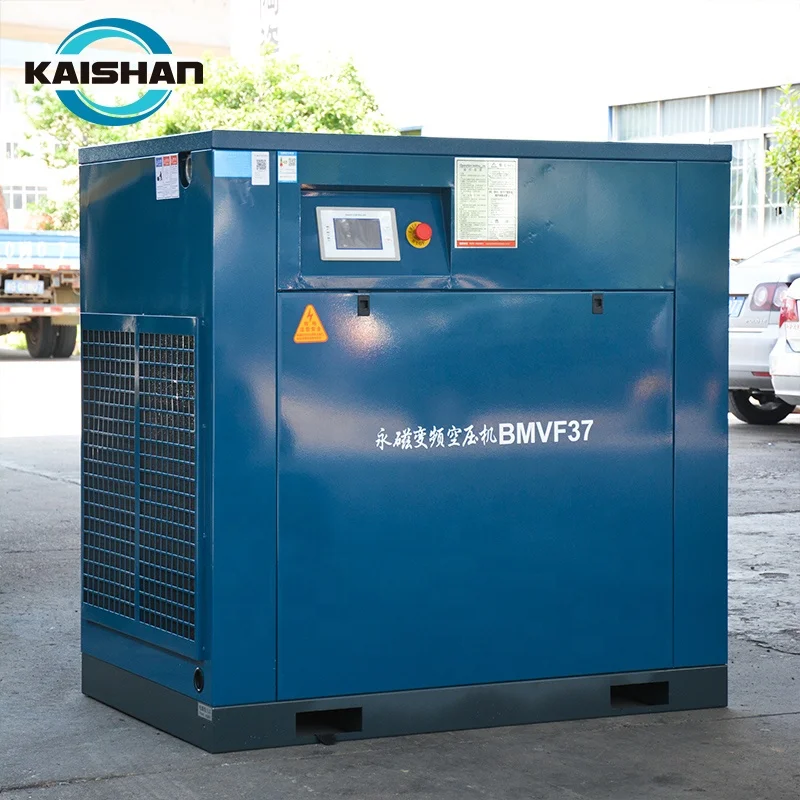

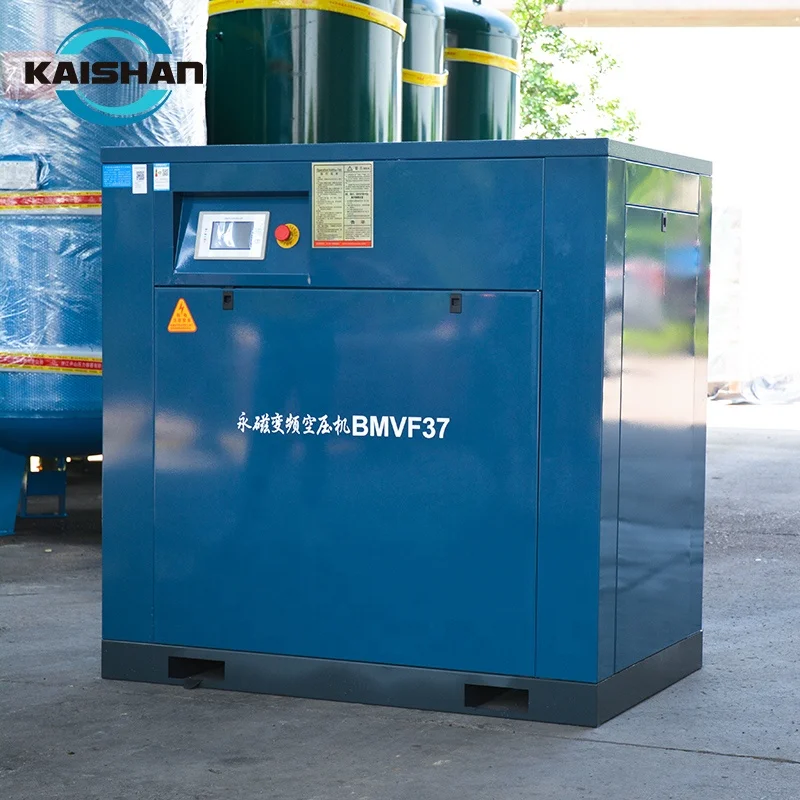

| BMVF37 | 0.65-1.0 | 5.05-6.35 | 37 | G1 1/2 | 500 | 1340*850*1330 |
| BMVF45 | 0.65-1.0 | 6.45-8.20 | 45 | G1 1/2 | 660 | 1480*1030*1365 |
| BMVF55 | 0.65-1.0 | 8.20-9.85 | 55 | G1 1/2 | 710 | 1480*1030*1365 |
| BMVF75 | 0.65-1.0 | 10.50-13.10 | 75 | G2 | 1170 | 1800*1190*1710 |

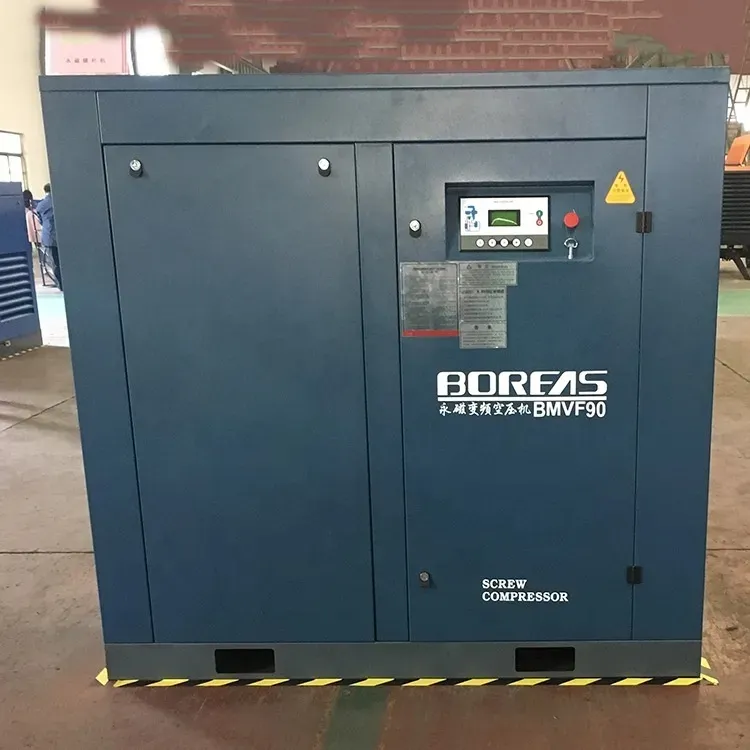

| BMVF90 | 0.65-1.0 | 12.50-15.50 | 90 | G2 | 1180 | 1800*1190*1710 |

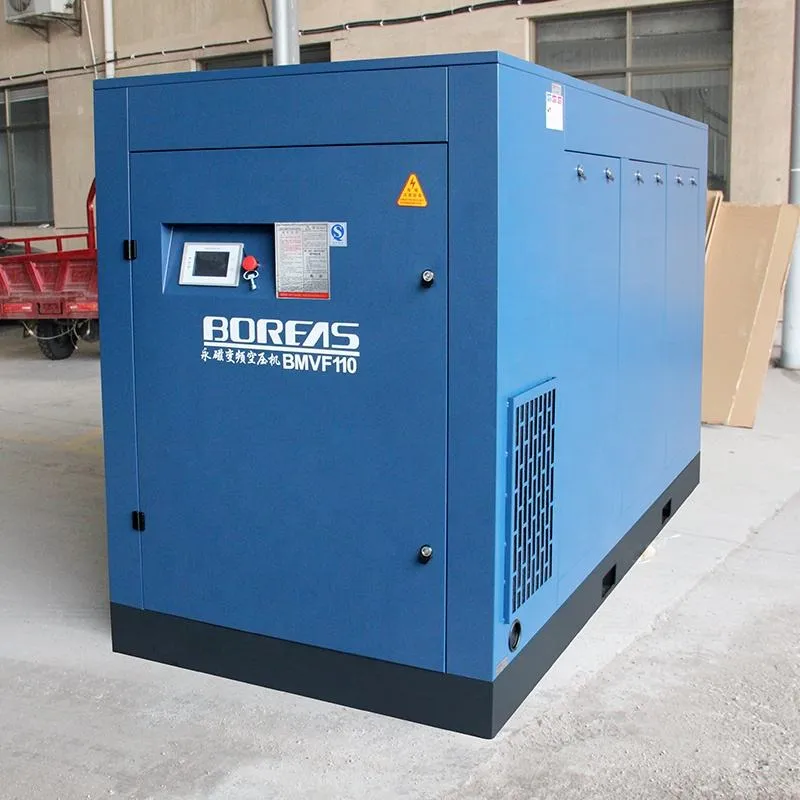

| BMVF110 | 0.65-0.8 | 22.00 | 110 | DN65 | 1770 | 2700*1230*1730 |

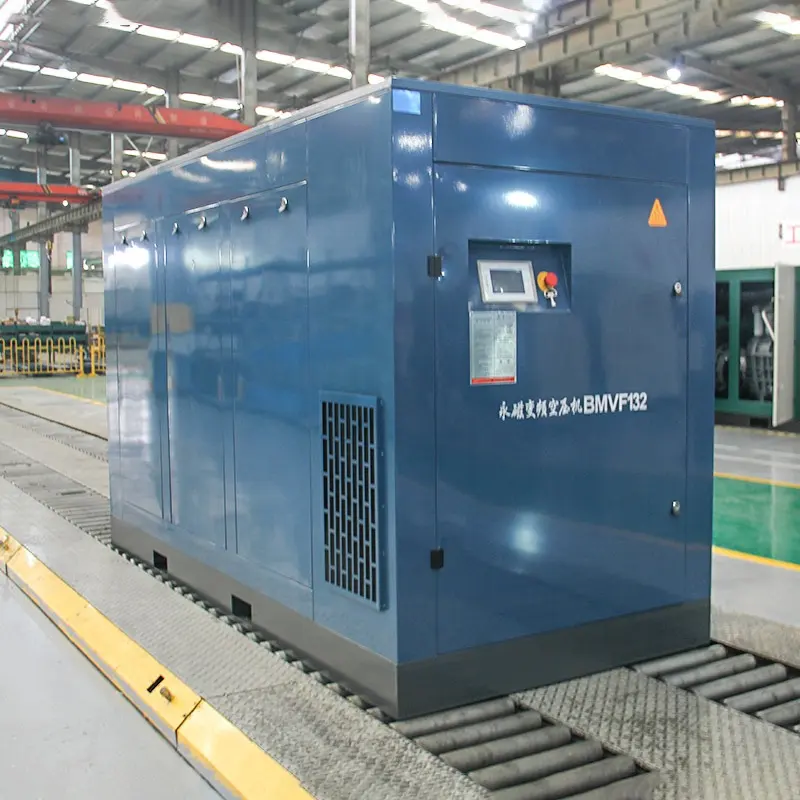

| BMVF132 | 0.65-0.8 | 24.00 | 132 | DN65 | 1860 | 2700*1230*1730 |
