]]> Kalshang BMVF Series Variable Frequency Screw Air Compressor VSD Screw Equipment

Kalshang BMVF Series Parameters

Model No.: Working power:

(Mpa)

 Air delivery:(m3/min) Motor power:

(kw)

 Exhaust outlet: Weight（kg） Dimension

(L*W*H):

(mm)
BMVF7.5 0.65-1.0 1.00-1.25 7.5 G3/4 170 880*510*800

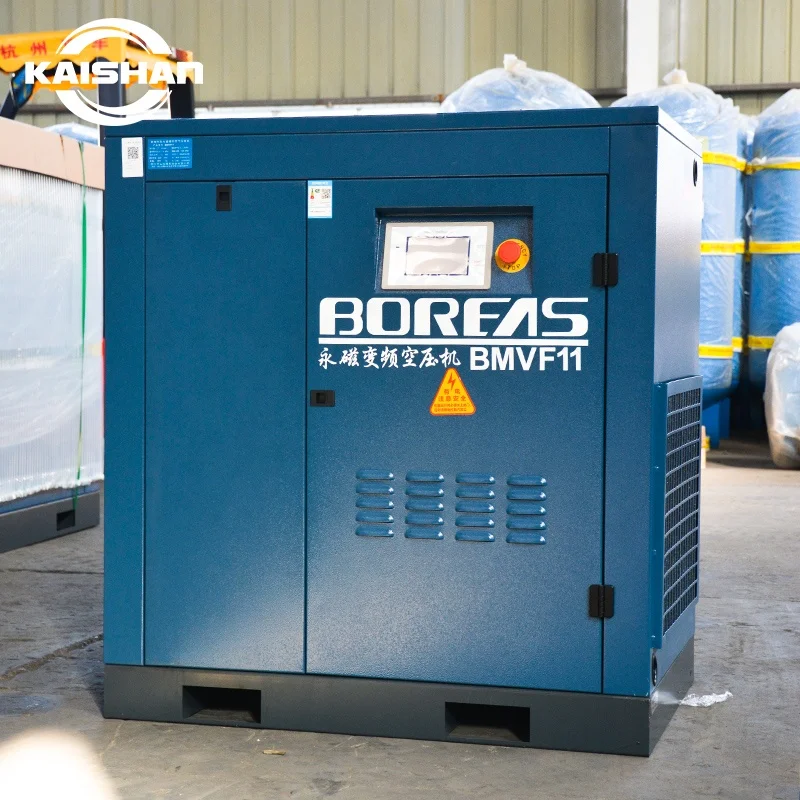

BMVF11 0.65-1.0 1.50-1.85 11 G1 220 1000*670*1090
BMVF15 0.65-1.0 2.05-2.35 15 G1 250 1000*670*1090
BMVF22 0.65-1.0 2.95-3.95 22 G1 330 1200*800*1120
BMVF37 0.65-1.0 5.05-6.35 37 G1 1/2 500 1340*850*1330
BMVF45 0.65-1.0 6.45-8.20 45 G1 1/2 660 1480*1030*1365
BMVF55 0.65-1.0 8.20-9.85 55 G1 1/2 710 1480*1030*1365

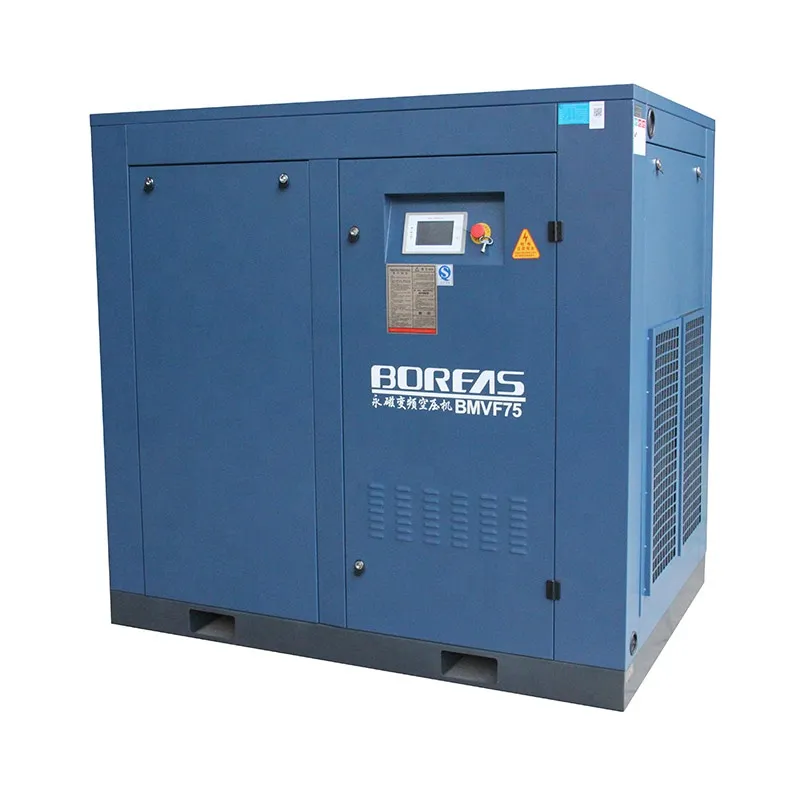

BMVF75 0.65-1.0 10.50-13.10 75 G2 1170 1800*1190*1710
BMVF90 0.65-1.0 12.50-15.50 90 G2 1180 1800*1190*1710
BMVF110 0.65-0.8 22.00 110 DN65 1770 2700*1230*1730
BMVF132 0.65-0.8 24.00 132 DN65 1860 2700*1230*1730

Get A Free Quote Now
Pls enter country code

The post Kalshang BMVF Series Variable Frequency Screw Air Equipment VSD Screw Equipment appeared first on Zhejiang Kalshang Equipment | Kalshang Air Equipment | Kalshang Group.

]]> Kalshang PMV Series Variable Speed Equipments for Improved Energy Efficiency ../../../../product/kaitain-variable-speed-compressor-for-improved-energy-efficiency/index.html?utm_source=rss&> Thu, 24 Mar 2022 05:59:09 +0000 index.html?post_type=product&> Benefits of a Variable Speed Equipment

  1. No need to unload - the ability to start and stop under full system pressure.
  2. Reduced power costs - no loss of energy through running unloaded.
  3. Reduced power surges - avoid peak currents from starting air Equipment motor.
  4. More energy efficient - save 30% of the energy used by a typical fixed speed Equipment.
  5. Precise electrical control - motor speeds can be slowed down, brought to a halt or revved up.
  6. System leaks minimised - lower system pressure reduces the risk of leaks.

The post Kalshang PMV Series Variable Speed Equipments for Improved Energy Efficiency appeared first on Zhejiang Kalshang Equipment | Kalshang Air Equipment | Kalshang Group.

]]> Kalshang PMV Series ( VSD ) Screw Equipment Energy-Saving

Energy efficiency is one of the most important factors all businesses are concerned with. The more efficient your air system, the lower your energy consumption and the cheaper your energy bill!

A vast amount of the energy that is lost in a factory or plant is due to wasted energy in an air Equipment installation. This can have a huge effect on energy costs, raising your bills and making your cost of ownership high. Various technologies have been developed to ensure that compressed air systems are performing as efficiently as possible, one such technology is variable speed drives (VSD).

15-250 KW PMV Series Variable Speed Drives ( VSD ) Screw Equipment

Model Discharge Pressure

（bar）

 Air Flow （m3/min） Motor Power Discharge Connection Dimension （mm） Weight （kg）
PMVFQ15



 6 to 10 2.37-2.88 15 KW G1 1050 x 83×1240



 380
PMVFQ22



 6 to 10 3.61-4.22



 22 KW G1 1200×830×1290 480
PMVFQ37



 6 to 10 6.28-7.42 37 KW G1 1/2



 1400×1000×154 710
PMVFQ55



 6 to 10 9.99-11.95



 55 KW G1 1/2



 1500×1160×1700 990
PMVFQ22-Ⅱ



 6 to 10 3.8-4.6 22 KW G1 1650×900×1110 550
PMVFQ37-Ⅱ



 6 to 10 6.5-7.65 37 KW G1 1/2



 1820×1000×1140 740
PMVFQ55-Ⅱ



 6 to 10 10.5-12.5 55 KW G1 1/2



 2100×1200×1330 1100
PMVFQ75-Ⅱ



 6 to 10 14.5-16.5 75 KW G2 2160×1220×1580 1450
PMVFQ90-Ⅱ



 6 to 10 16.8-21.7 90 KW DN65 3110×1780 x2020



 3600
PMVFQ110-Ⅱ



 6 to 10 19.3-25.7 110 KW DN65 3110x1890x2060 4450
PMVFQ132-Ⅱ



 6 to 10 23.7-33.6 132KW DN80 3440×1930 x 2260



 5100
PMVFQ160-Ⅱ



 6 to 10 30.6-39.5 160 KW DN80 4160 x2260x 2280



 6100
PMVFQ185-Ⅱ



 6 to 10 33.6-43.5 185 KW DN100 4160 x2260x 2280



 6300
PMVFQ200-Ⅱ



 6 to 10 39.5-47.4 200 KW DN100 4160 x2260x 2280



 6450
PMVFQ220-Ⅱ



 6 to 10 42.5-54.3 220 KW DN100 4160 x2260x 2350



 8920
PMVFQ250-Ⅱ



 6 to 10 46.4-59.3 250 KW DN125 4260 x2410x 2350



 9420
Note: withⅡis double stage, withoutⅡis single stage

What is VSD?

Variable speed drive (sometimes called variable frequency drive or regulated speed) Equipments use an intelligent drive system to continuously alter the motor speed to match the air demand. This drive controls the speed (RPM) of the unit depending on the demand, fluctuating the amount of power that is used to perfectly match the output required. When the demand slows, the compressed air system will reduce motor speed and thus the power consumption is also reduced.



Benefits of a Variable Speed Equipment

  1. No need to unload – the ability to start and stop under full system pressure.
  2. Reduced power costs – no loss of energy through running unloaded.
  3. Reduced power surges – avoid peak currents from starting air Equipment motor.
  4. More energy efficient – save 30% of the energy used by a typical fixed speed Equipment.
  5. Precise electrical control – motor speeds can be slowed down, brought to a halt or revved up.
  6. System leaks minimised – lower system pressure reduces the risk of leaks.

Could I benefit from a Variable Speed Drive Equipment?

Many air Equipment installations will benefit from the efficiency variable speed drive technology provides. Whether you are in the food and beverage industry, automotive, medical industry or even manufacturing, there will be times when your demand for compressed air will vary.

A combination of both variable and fixed speed Equipments is thought to be the most cost-effective and advantageous set-up, resulting in the most energy saved and demands met.
